SPIT DRIVER PLAST BOARD FIX STD 100

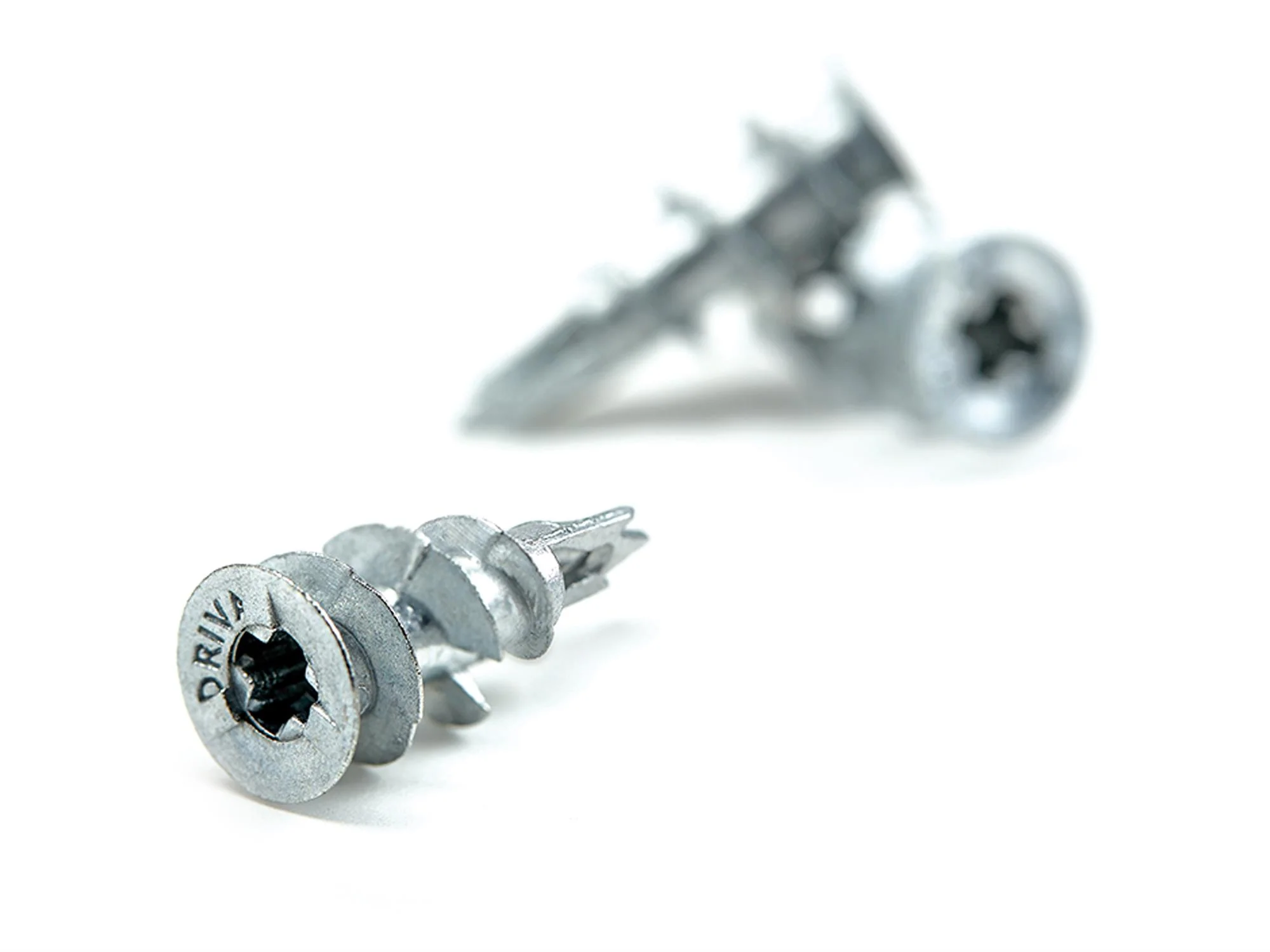

SPIT DRIVA TP12 Plasterboard & Aerated Concrete Anchor — Pack of 100
The SPIT DRIVA TP12 is a self-drilling anchor designed for secure fixing into laminated plasterboard (BA13) and aerated concrete. Supplied in a pack of 100, it is the trade professional's choice for high-volume installations where consistent holding performance is essential.
The TP12 is suited to standard plasterboard thicknesses and is supplied complete with a special PZ2 head screw. Installation is fast and tool-driven — no pre-drilling required in standard plasterboard.
Anchor Dimensions
| Type | tfix (mm) | d (mm) | D (mm) | L1 (mm) | dc (mm) | L (mm) | Ref. |
|---|---|---|---|---|---|---|---|
| DRIVA TP12 | 12 | 4.5 | 9.2 | 35 | 13 | 31 | 059360 |
Load Performance Data
Tensile Loads
| Base Material | Nrec (kN) | NRu,m (kN) |
|---|---|---|
| Plasterboard BA13 | 0.06 | 0.30 |
| Aerated Concrete | 0.06 | 0.30 |
Shear Loads
| Base Material | Vrec (kN) | VRu,m (kN) |
|---|---|---|
| Plasterboard BA13 | 0.18 | 0.90 |
| Aerated Concrete | 0.18 | 0.90 |
Typical Applications
- Bathroom accessories
- Wall heaters
- Electrical switch boxes, trunking & conduit
- Curtain track
Installation Notes
- Self-drilling — no pre-drilling required in standard plasterboard
- Pre-drilling required in laminated plasterboard or gypsum block: HSS Ø10 mm
- Pre-drilling required in aerated concrete: HSS Ø6 mm
Materials
- Body: Zamak 3 (NFA 55.010)
- Screw: Special screw supplied, PZ2 head
Related Products
- Need a heavier-duty option? See the SPIT Driver Plasterboard Fix Heavy Duty.
- Browse our full Dry Wall Screws & Fixings range.
