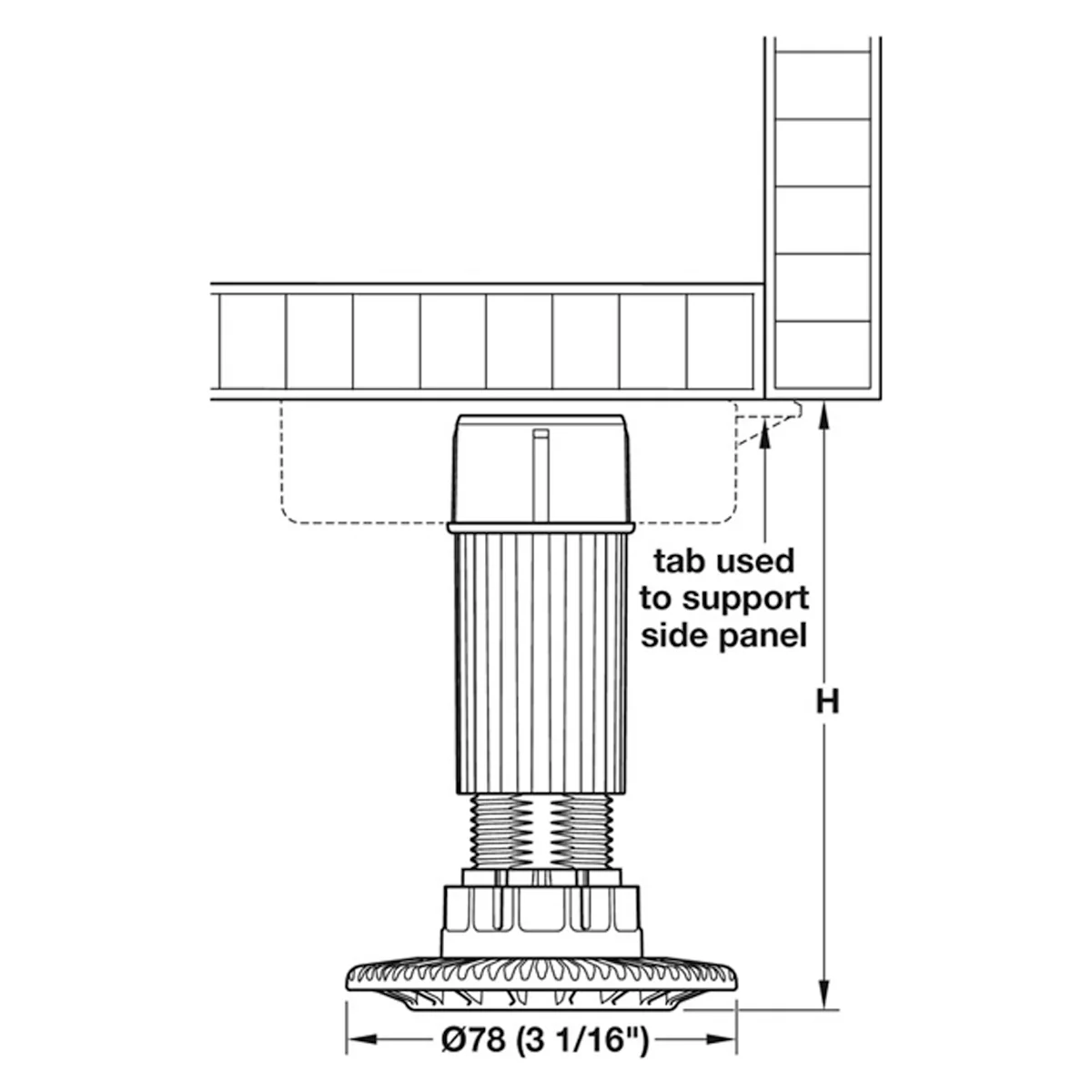

Axilo 78 Plinth Foot & Shaft — Ø78 × 180mm, Black, 170–200mm Adjustment, Pack of 20

The Axilo 78 Plinth Foot & Shaft Ø78 × 180mm is the maximum-height option in the Axilo 78 adjustable leg system, delivering a 170–200mm adjustment range for the most demanding plinth configurations. Ideal for installations over deep skirting boards, significantly uneven floors, or where a tall plinth void is required, this shaft gives fitters the full reach needed to achieve a level, professional result. Supplied in a pack of 20 for trade and volume use.

Key Features

• Adjustment range: 170–200mm — maximum height for the Axilo 78 system
• Diameter: Ø78mm — wide-base stability for heavy cabinet loads
• Shaft length: 180mm
• Colour: Black — discreet beneath cabinet bases
• Pack quantity: 20 pieces
• Compatible with Axilo 78 Plinth Foot Top Press sections and the full Cabinet Hardware — Legs, Castors & Glides range

Ideal For

Kitchen fitters and cabinet installers requiring the tallest adjustment range in the Axilo 78 system. Combine with Axilo 78 Plinth Foot Top Press sections and Plinth Holders for a complete plinth installation. Browse the full Cabinet Legs range for all available shaft lengths.

Specification

• Part Number: 63776356
• Pack Quantity: 20 pieces
• Diameter: Ø78mm
• Shaft Length: 180mm
• Adjustment Range: 170–200mm
• Colour: Black
• System: Axilo 78
• Application: Kitchens & Bedrooms
