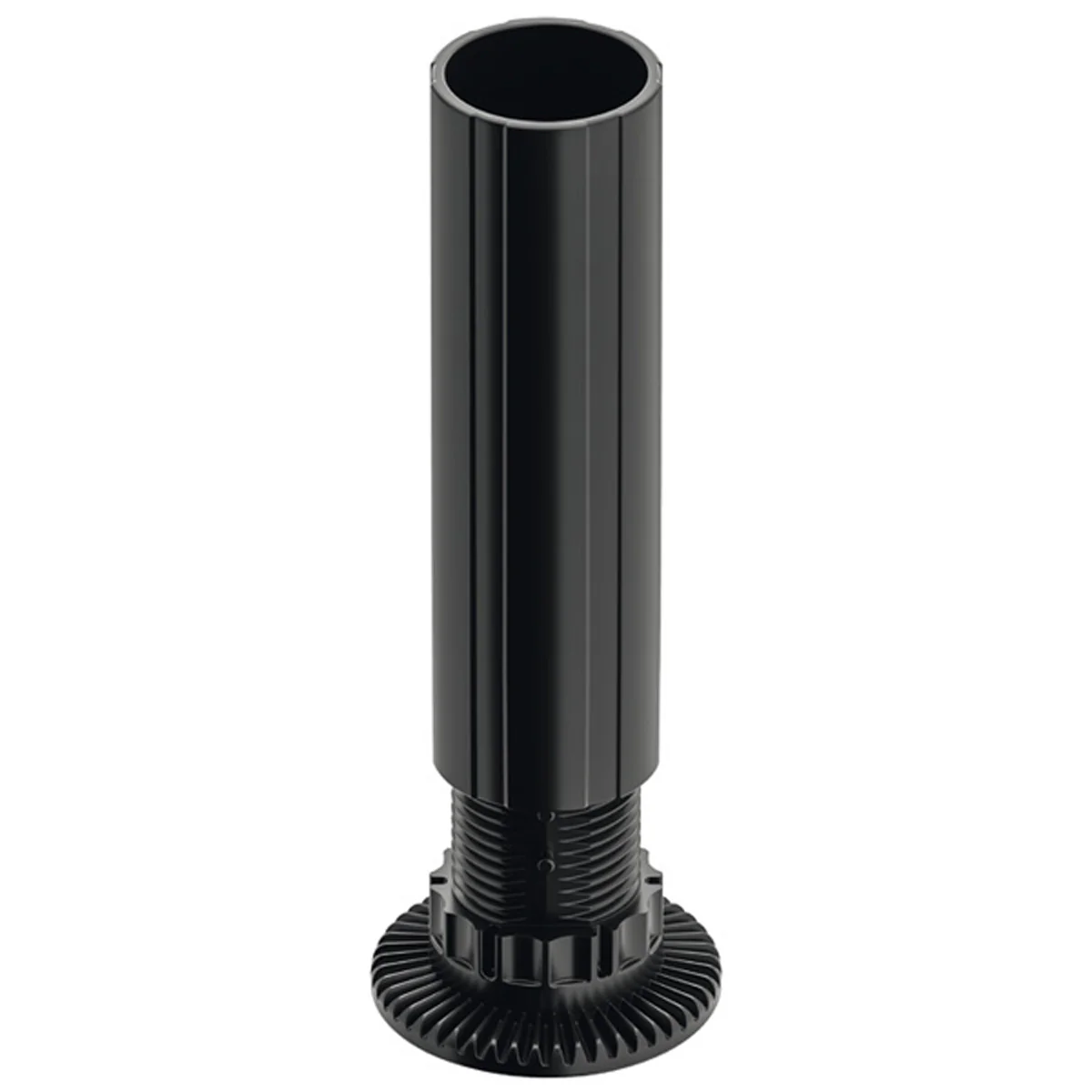

Axilo 48 Plinth Foot & Shaft — Ø48 x 150mm, Black, 135–170mm Adjustment Range

The Axilo 48 Plinth Foot & Shaft 150mm is the tall-height option in the Axilo 48 adjustable leg system, providing a 135–170mm adjustment range for installations requiring a higher plinth clearance. Whether you're fitting cabinets over deep skirting, uneven concrete floors, or raised plinths, this shaft gives you the reach to achieve a perfectly level, professional finish.

Key Features

• Adjustment range: 135–170mm — for taller plinth configurations and raised cabinet bases
• Diameter: Ø48 mm — robust circular shaft for stable load-bearing performance
• Shaft length: 150mm
• Colour: Black — discreet beneath cabinet bases
• Height-adjustable — no shimming or floor cutting required
• Compatible with Axilo 48 Plinth Foot Top Sections and the full Cabinet Hardware — Legs, Castors & Glides range

Ideal For

Kitchen fitters and cabinet installers needing maximum height flexibility in the Axilo 48 system. Combine with Worktop Legs & Table Bases and plinth clips or lug tops for a complete solution. Browse the full Cabinet Legs range for all available shaft lengths.

Specification

• Part Number: 63745333
• Type: Plinth Foot & Shaft
• Diameter: Ø48 mm
• Shaft Length: 150mm
• Adjustment Range: 135–170mm
• Colour: Black
• Application: Kitchens & Bedrooms
