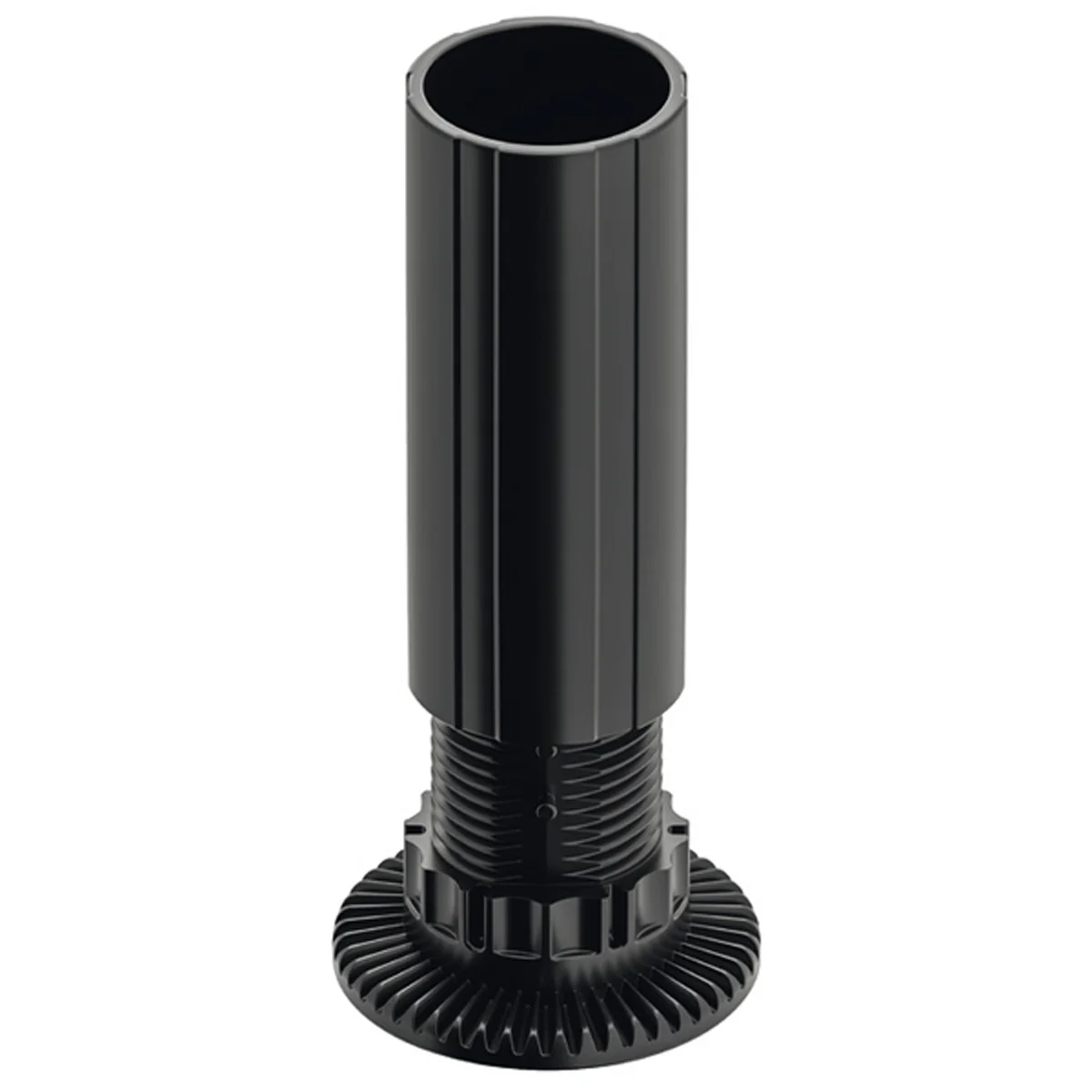

Axilo 48 Plinth Foot & Shaft — Ø48 x 120mm, Black, 105–140mm Adjustment Range

The Axilo 48 Plinth Foot & Shaft 120mm is the mid-range height option in the Axilo 48 adjustable leg system, offering a 105–140mm adjustment range to suit taller plinth configurations in kitchen and bedroom cabinet installations. Its robust Ø48mm shaft provides a stable, load-bearing base that keeps cabinets level and plinths perfectly aligned — even on uneven or sloping floors.

Key Features

• Adjustment range: 105–140mm — suited to taller plinth heights and raised cabinet bases
• Diameter: Ø48 mm — robust circular shaft for stable load-bearing performance
• Shaft length: 120mm
• Colour: Black — discreet beneath cabinet bases
• Height-adjustable — no shimming or floor cutting required
• Compatible with Axilo 48 Plinth Foot Top Sections and the full Cabinet Hardware — Legs, Castors & Glides range

Ideal For

Kitchen fitters and cabinet installers needing a taller adjustment range. Combine with Worktop Legs & Table Bases and plinth clips or lug tops for a complete solution. Browse the full Cabinet Legs range for all available shaft lengths.

Specification

• Part Number: 63745332
• Type: Plinth Foot & Shaft
• Diameter: Ø48 mm
• Shaft Length: 120mm
• Adjustment Range: 105–140mm
• Colour: Black
• Application: Kitchens & Bedrooms
